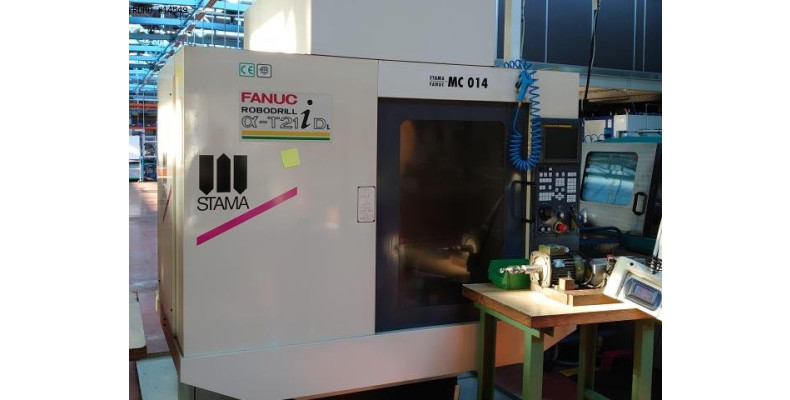

FANUC ROBODRILL ALPHA T21 iDL 4 axis

Name: Vertical machining center FANUC ROBODRILL ALPHA T21 iDL 4 axes
Brand: FANUC
Availability: InStock

Milling Vertical machining center

14549

PDF datasheet to download:

Brand: FANUC

Model: ROBODRILL ALPHA T21 iDL

Year: 2003

Serial: P039UP229

14549

FANUC ROBODRILL ALPHA T21 iDL 4 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: FANUC

Model: ROBODRILL ALPHA T21 iDL

Year: 2003

Serial: P039UP229

Ask Price

Caracteristics

- Number of axes : 4
MILLING SPINDLE
- Tool holder type : BT30
- Spindle power : 4 [kW]
- Spindle speeds : 10000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 700/400/330 [mm]
- Distance table / spindle nose (min./max.) : 150-480 [mm]
TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 21
TABLE
- Table dimensions : 850/410 [mm]
- Maximum weight upon table : 300 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 10 [m/min]
WEIGHT & DIMENSIONS
- Machine floor space : 2115 / 2040 [mm]
- Machine height : 2600 [mm]
- Machine weight : 2200 [kg]

Equipment

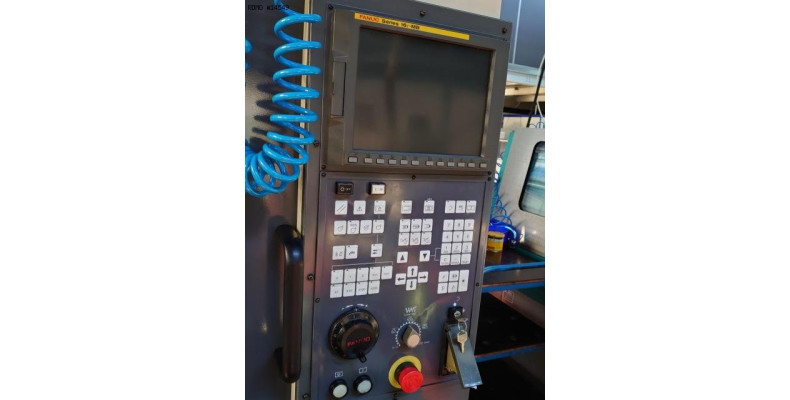

- CNC : Fanuc 16 iMB
- RS232 connections, PCMCIA card
- Type of divisor : 4e axe CNC intégré
- Coolant tank
