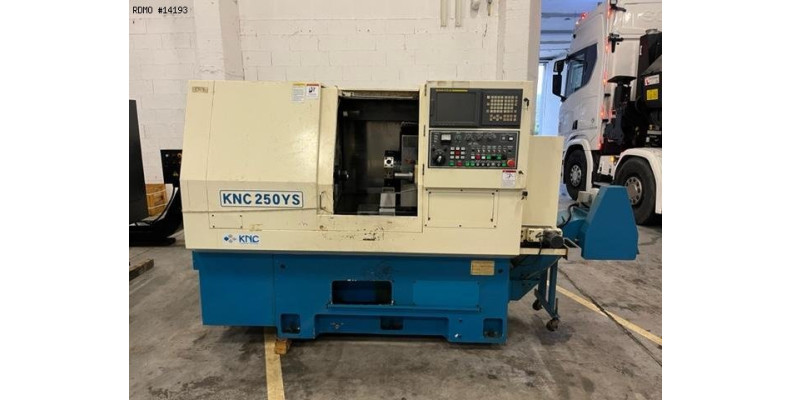

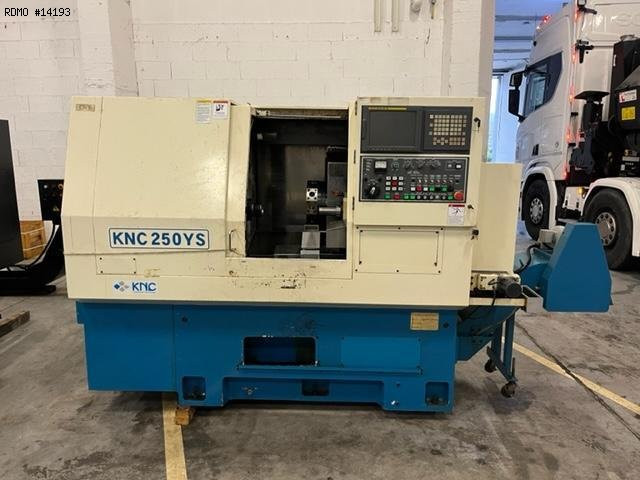

KITAMURA KNC 250 YS 6 axis

Name: CNC lathe KITAMURA KNC 250 YS 6 axes
Brand: KITAMURA
Availability: InStock

Turning CNC lathe

14193

PDF datasheet to download:

Brand: KITAMURA

Model: KNC 250 YS

Year: 2011

Serial: 8039

14193

KITAMURA KNC 250 YS 6 axis

Turning CNC lathe

PDF datasheet to download:

Brand: KITAMURA

Model: KNC 250 YS

Year: 2011

Serial: 8039

Ask Price

Caracteristics

- Number of axes : 6
- Number of spindles : 2
- Number of turrets : 1

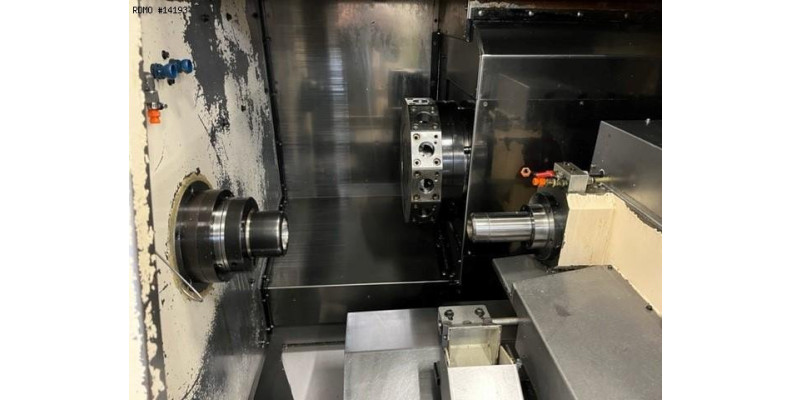

MAIN SPINDLE
- Spindle power : 7.5 [kW]
- Spindle speeds : 100-5000 [rpm]
- Max. bar diameter : 42 [mm]
- Max. chuck diameter : 160 [mm]
- C axis indexing precision : 0.001 [°]

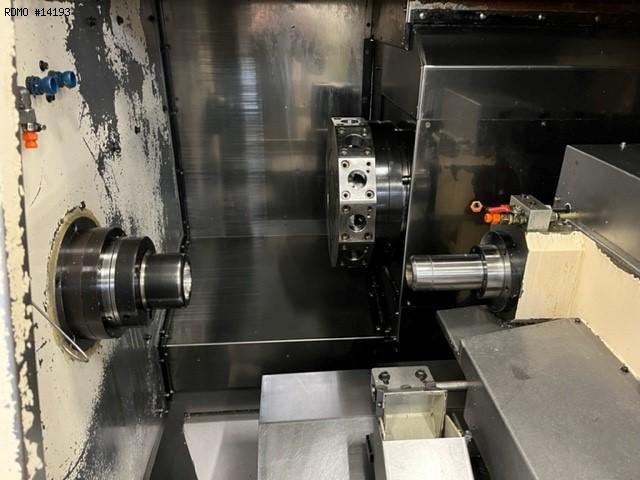

COUNTER-SPINDLE
- Spindle power : 3.7 [kW]
- Spindle speeds : 100-5000 [rpm]
- C axis indexing precision : 0.001 [°]

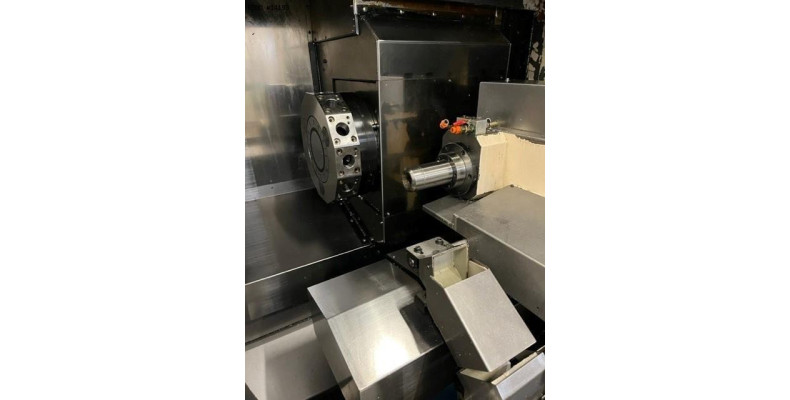

TURRET 1
- Number of positions : 12
- X/Z stroke : 160 / 260 [mm]
- Y stroke : 70 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 3000 X 2100 [mm]
- Machine height : 1700 [mm]
- Machine weight : 4500 [kg]

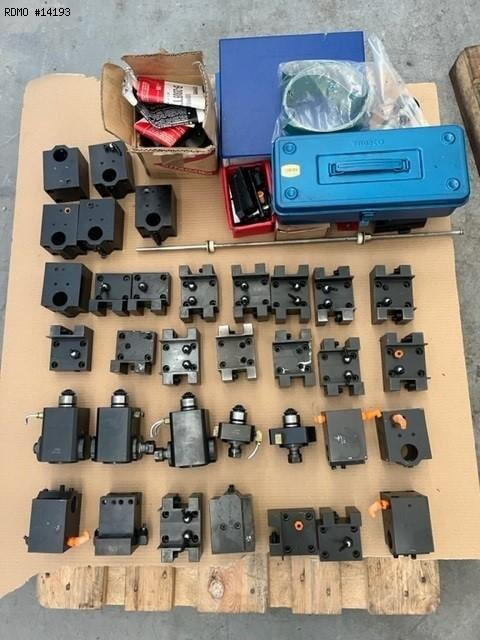

Equipment

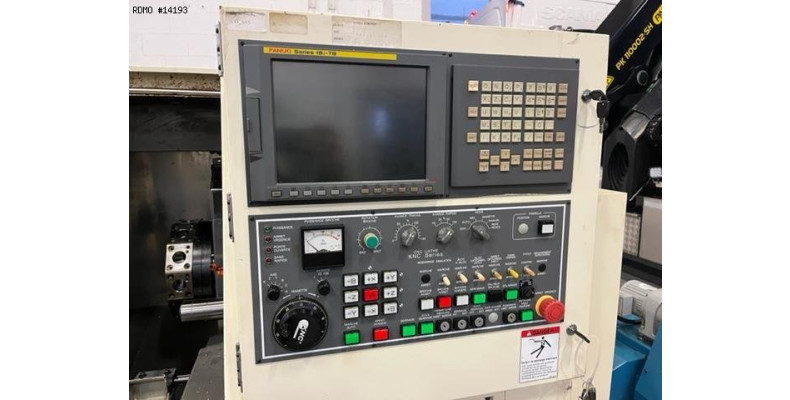

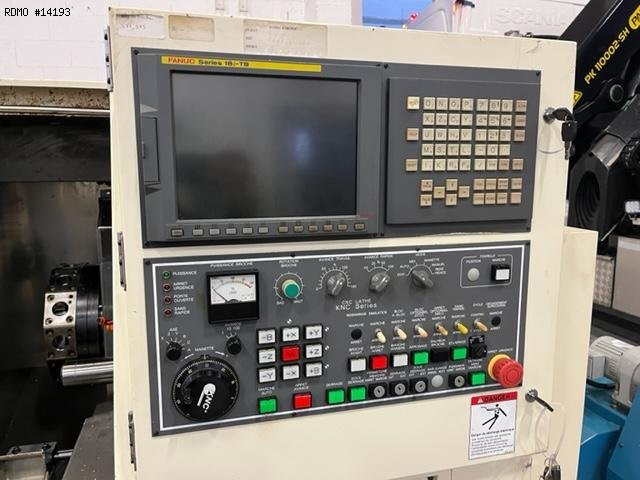

- CNC : Fanuc 18i-TB
- Coolant tank
- Chips conveyor
- Parts catcher
- Parts conveying strip
