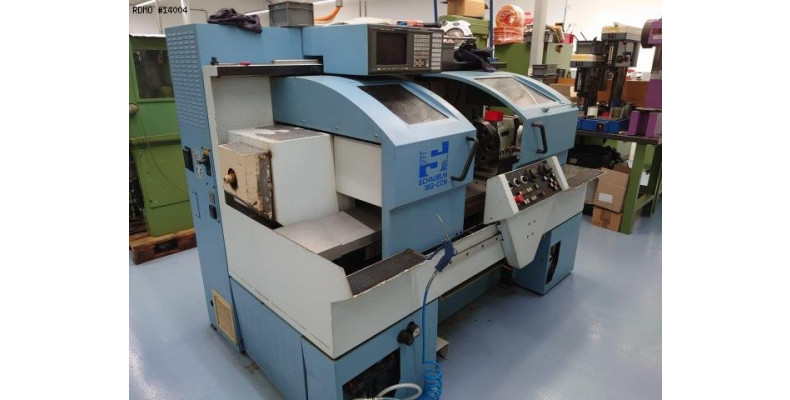

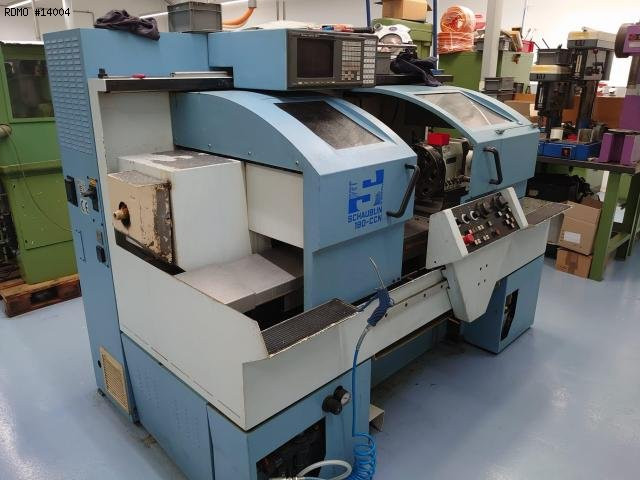

SCHAUBLIN 180-CCN

Turning CNC lathe
14004
PDF datasheet to download:
Brand: SCHAUBLIN
Model: 180-CCN
Year: 1998
Serial: 339015
14004
SCHAUBLIN 180-CCN
PDF datasheet to download:
Brand: SCHAUBLIN
Model: 180-CCN
Year: 1998
Serial: 339015
Ask Price

Caracteristics & Equipment

Caracteristics
- Number of axes : 2

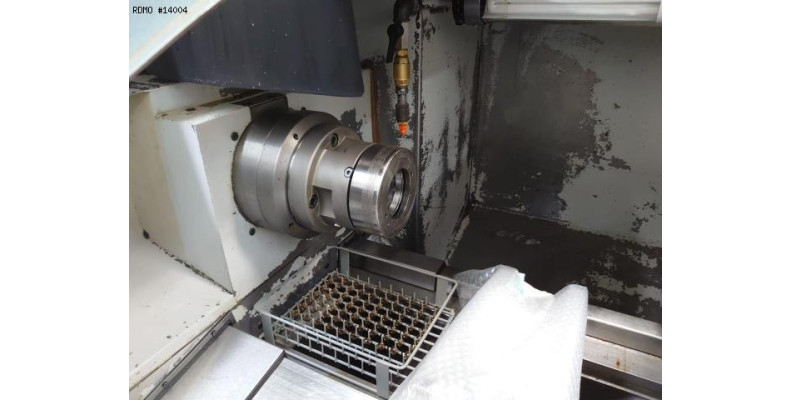

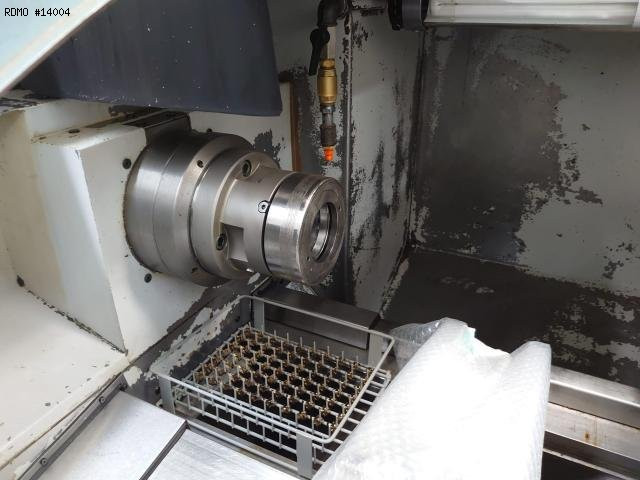

MAIN SPINDLE
- Spindle nose : A2-3
- Spindle power : 5,5 [kW]
- Spindle speeds : 30 - 5.000 [rpm]
- Max. bar diameter : 51 [mm]
- Max. diameter on bench : 280 [mm]
- Max. Ø above slide : 150 [mm]
- C axis indexing precision : 0,001 [°]

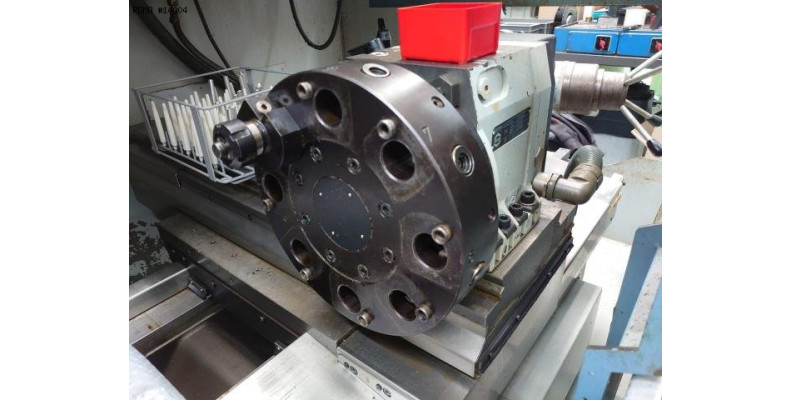

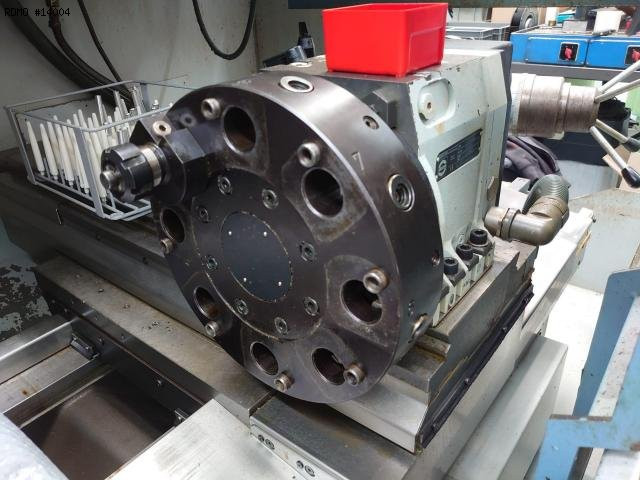

TURRET
- Number of positions : 8
- X/Z stroke : 220/300 [mm]

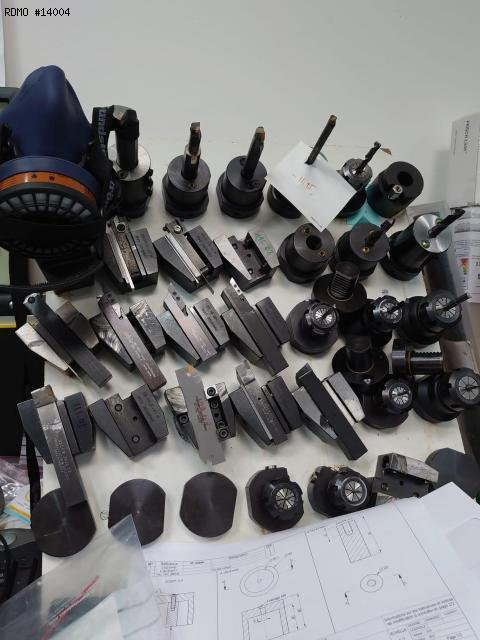

- Tool type : VDI30
- Distance between centers : 650 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2250x1410 [mm]
- Machine height : 1700 [mm]
- Machine weight : 2300 [kg]
Equipment
- CNC : Fanuc 18i
- Coolant tank

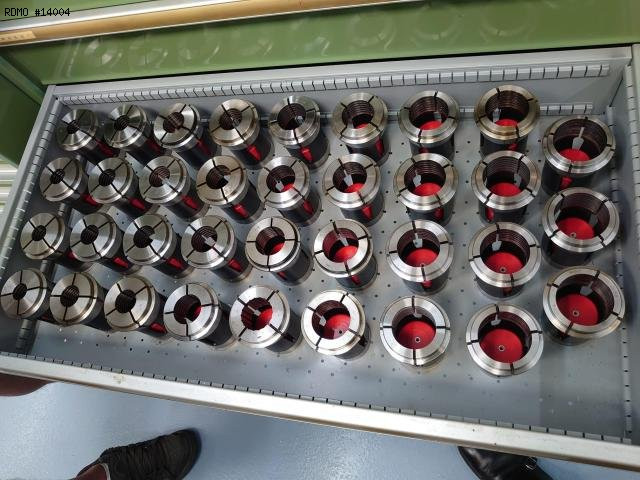

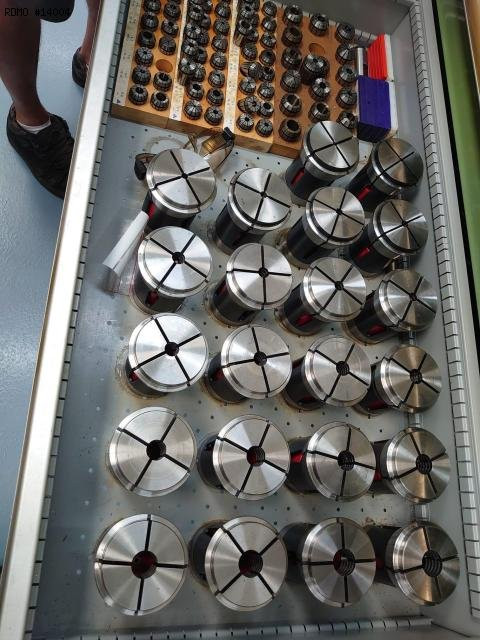

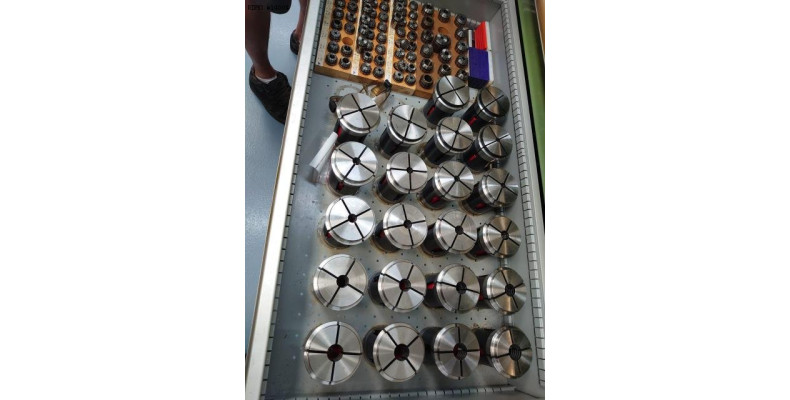

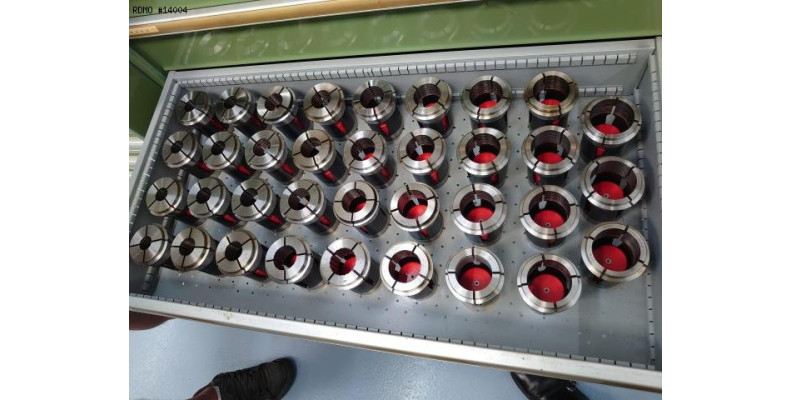

- Collet chuck

Datasheet

PDF datasheet to download:

Description
