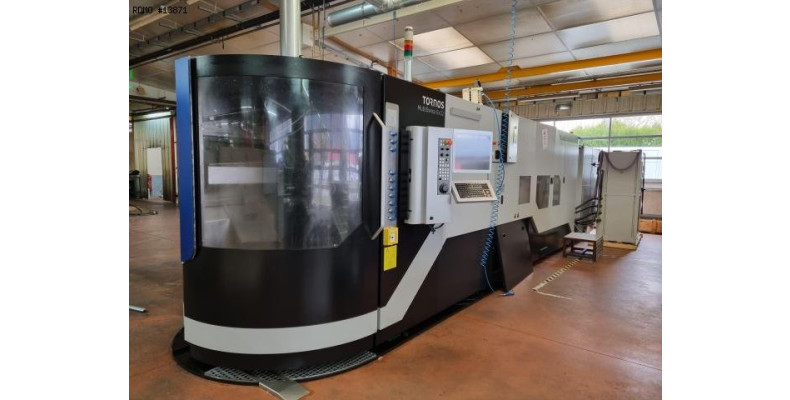

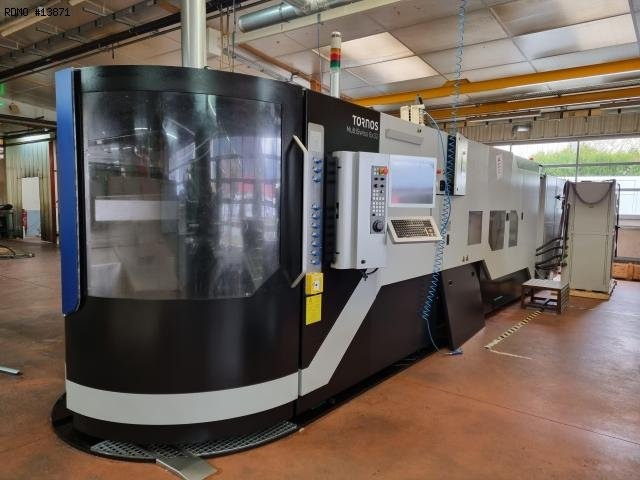

TORNOS MultiSwiss 6x32 22 axis

Name: Cnc multispindle lathe TORNOS MultiSwiss 6x32 22 axes
Brand: TORNOS
Availability: InStock

Turning Cnc multispindle lathe

13871

PDF datasheet to download:

Brand: TORNOS

Model: MultiSwiss 6x32

Year: 2018

Serial: 298385

13871

TORNOS MultiSwiss 6x32 22 axis

Turning Cnc multispindle lathe

PDF datasheet to download:

Brand: TORNOS

Model: MultiSwiss 6x32

Year: 2018

Serial: 298385

Ask Price

Caracteristics

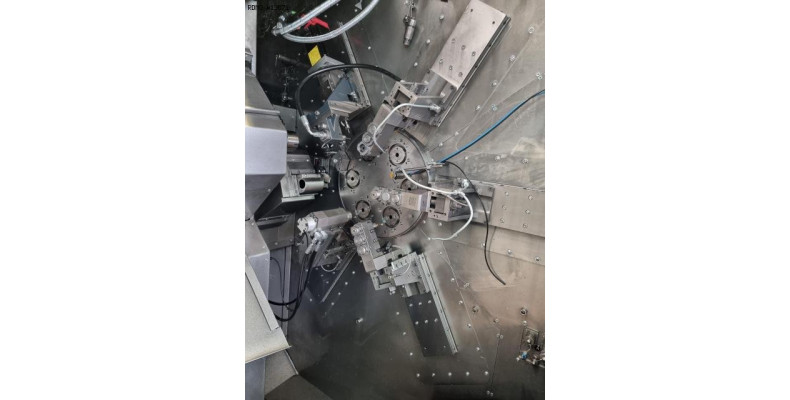

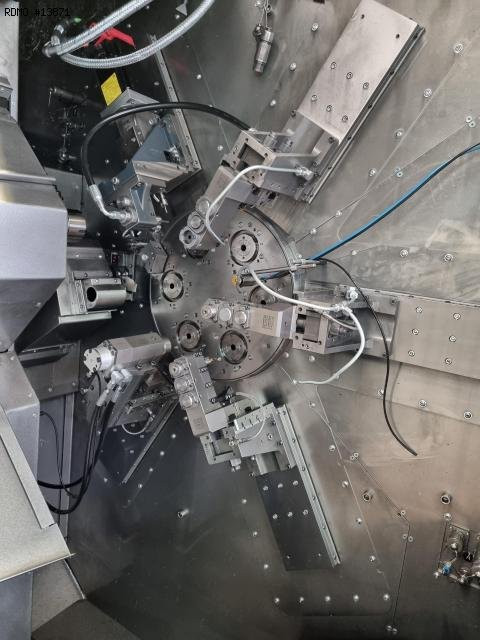

- Number of spindles: 6
- Number of linear axes: 14
- Number of rotary axes: 8
- Max. number of tools in counter operation: 4
MAIN SPINDLES
- Bar capacity: 32 [mm]
- Max. workpiece length: 65 [mm]
- Spindle speeds: 6000 [rpm]
- Spindle power: 11 [kW]
- Spindle stroke Z: 75 [mm]
- Spindle torque: 20 [Nm]
COUNTER SPINDLE
- Spindle speeds: 8000 [rpm]
- Spindle power: 11 [kW]
- Counter spindle torque: 12 [Nm]
- Counter spindle stroke Z: 150 [mm]
POWER SUPPLY
- Installed power: 140 [kW]
- Voltage: 400 [V] / 50 [Hz]
DIMENSIONS
- Floor dimensions: 9000 x 2260 [mm]
- Machine height: 2160 [mm]
- Machine weight: 14,800 [kg]

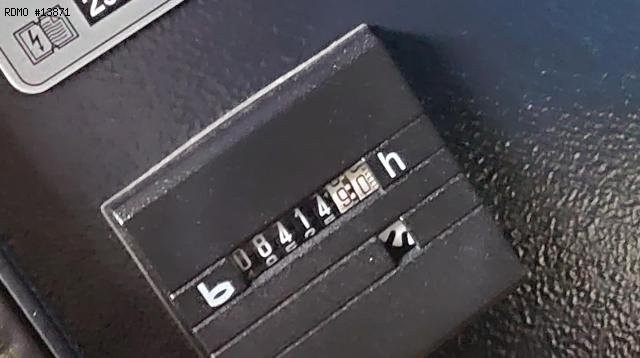

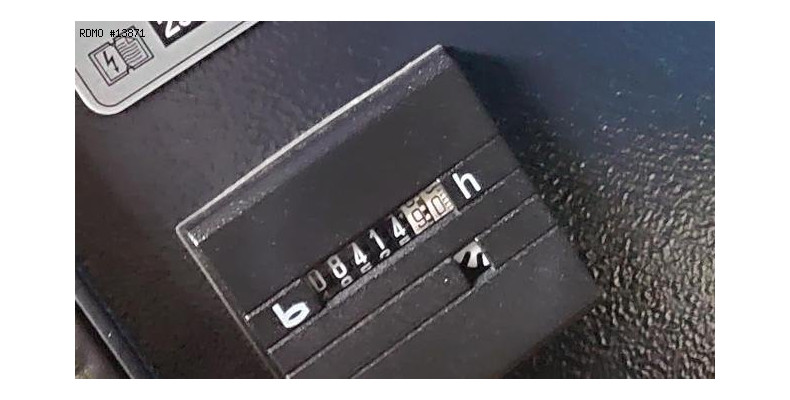

- Hours under power : 8414 [h]

Equipment

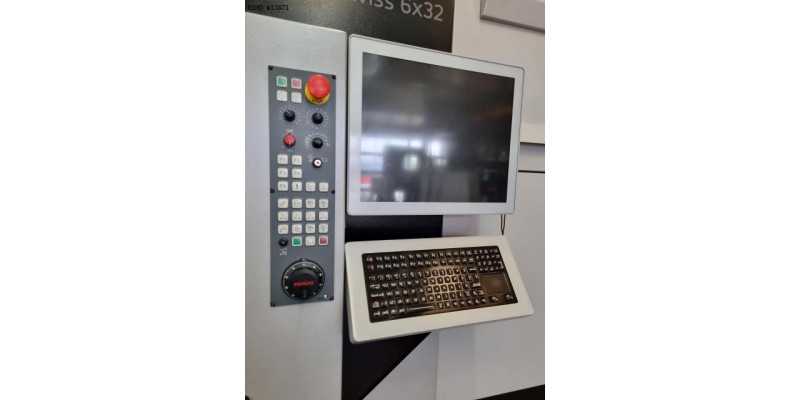

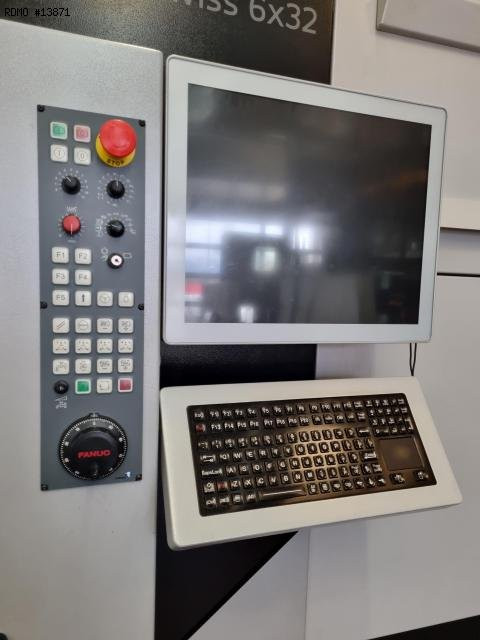

- CNC : Fanuc 30i
- 3 colour status lamp

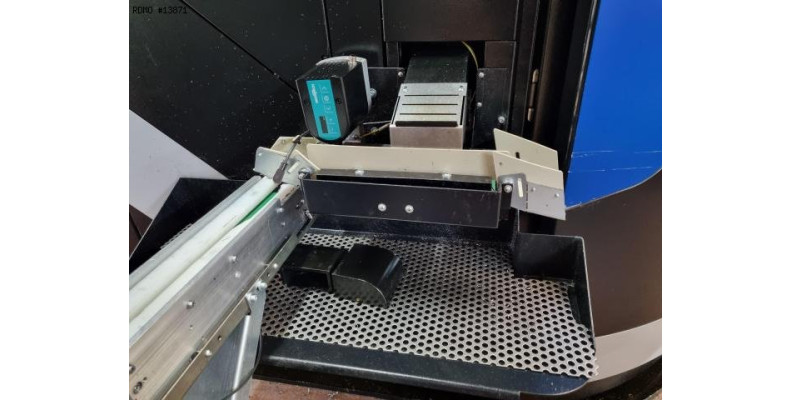

- Parts catcher

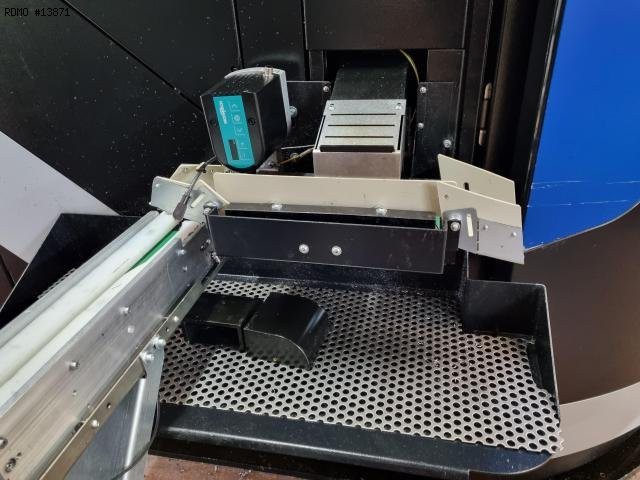

- Parts conveying strip
- Ejection of workpiece

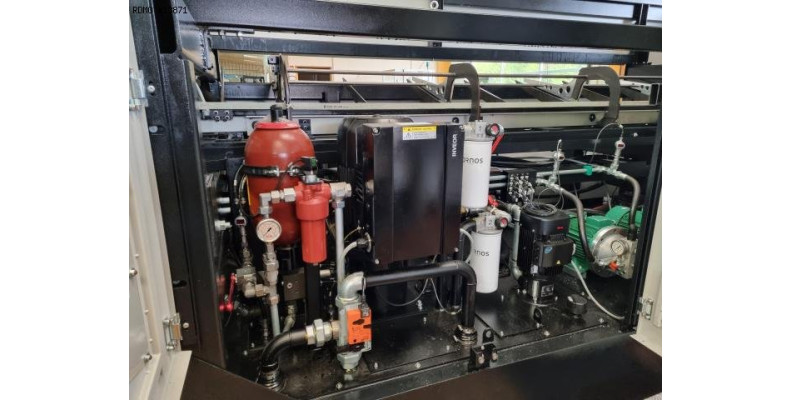

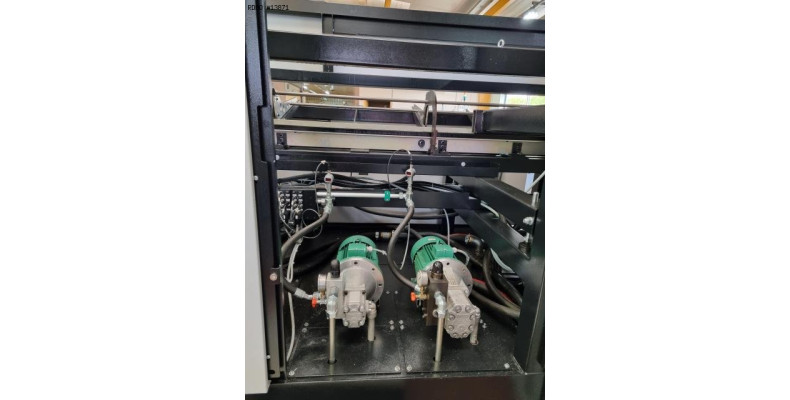

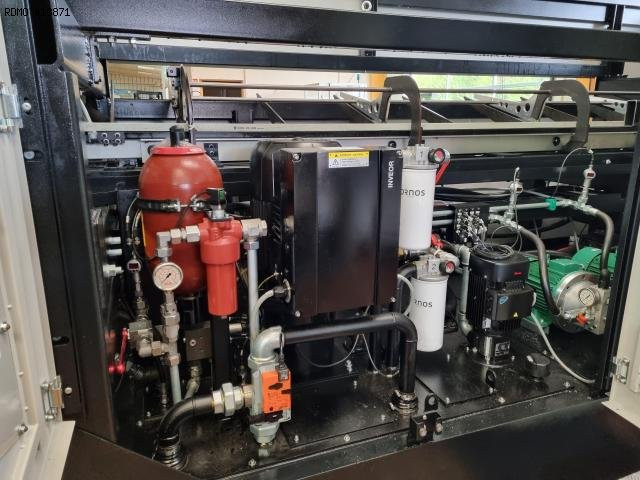

- Coolant pump: 4 [bar]
- Coolant tank

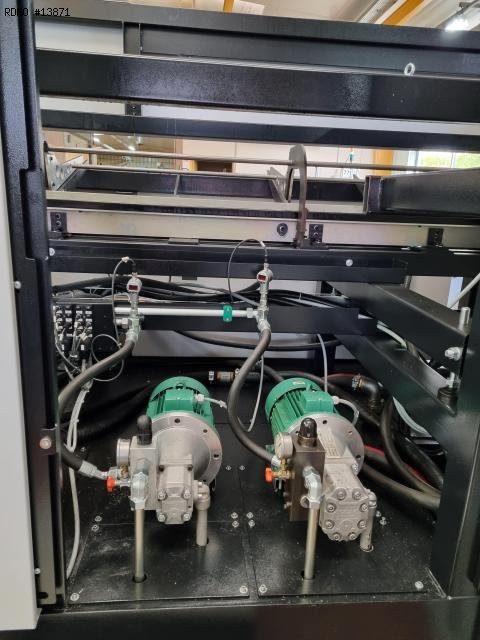

* with high pressure pump: 80 [bar]
* with paper filtration

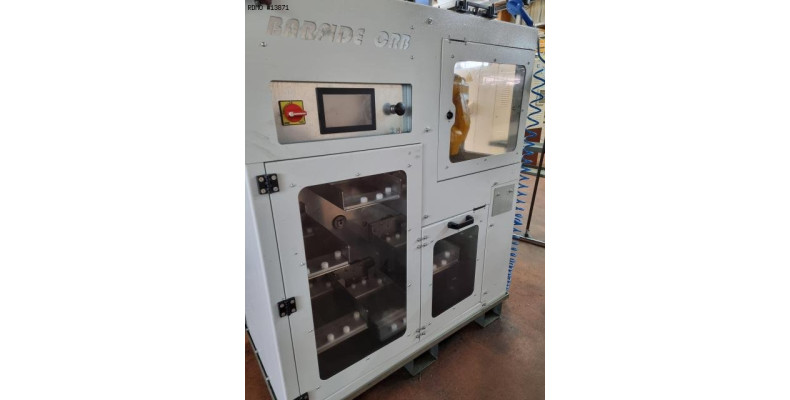

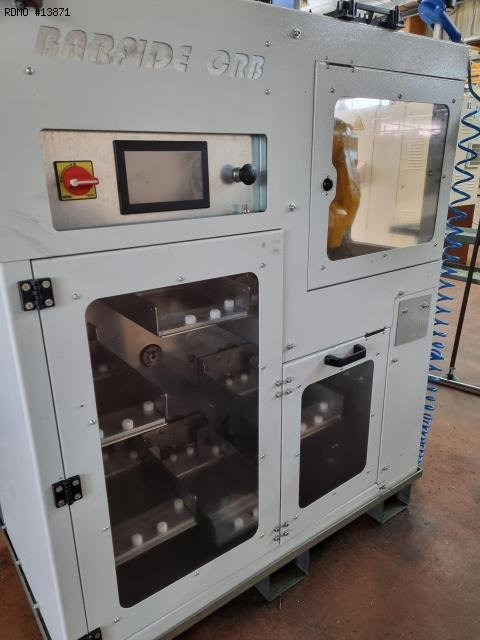

- Integrated bar feeder
*Bar length: 3 [m]
*Bar diameter: 5 - 32 [mm]

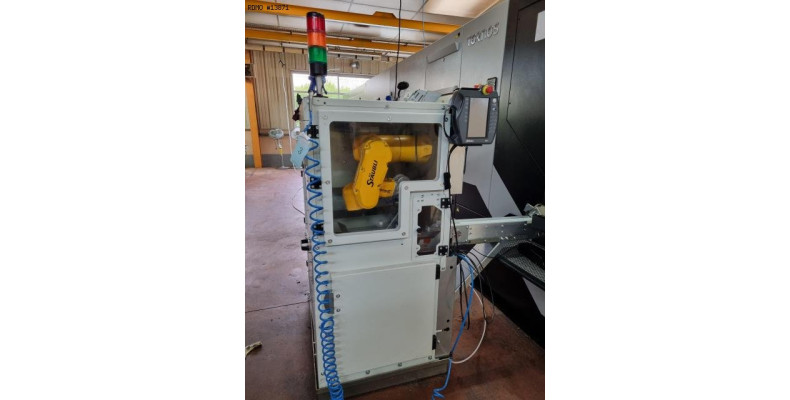

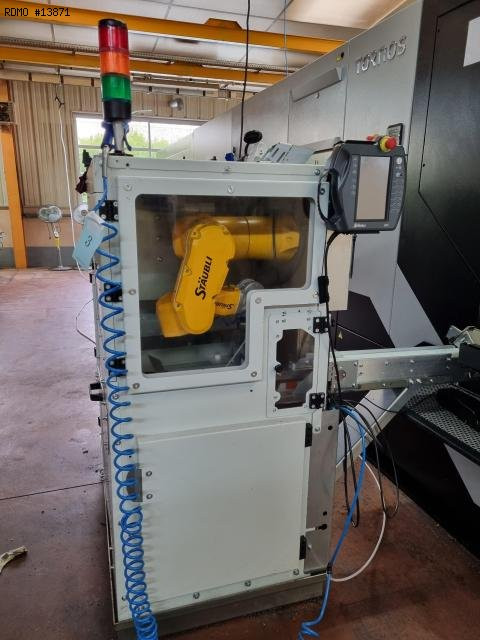

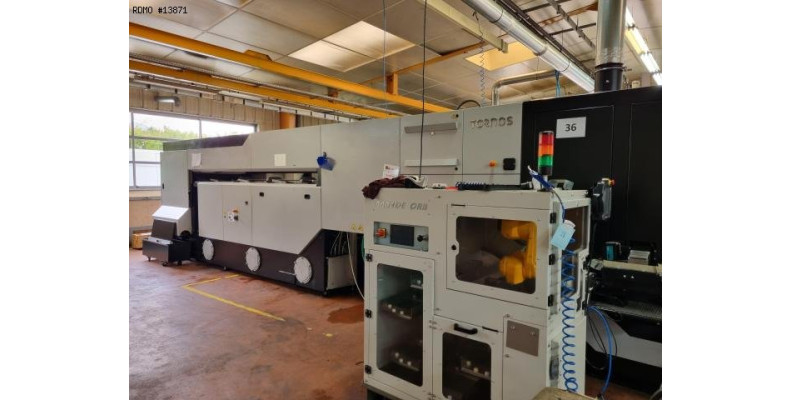

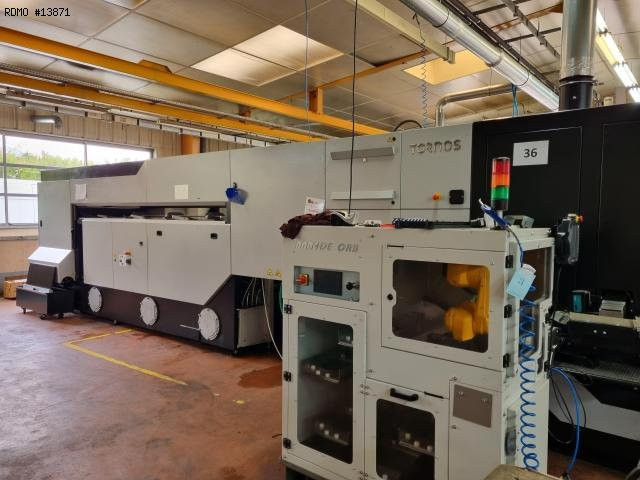

- Stäubli unloading robot
