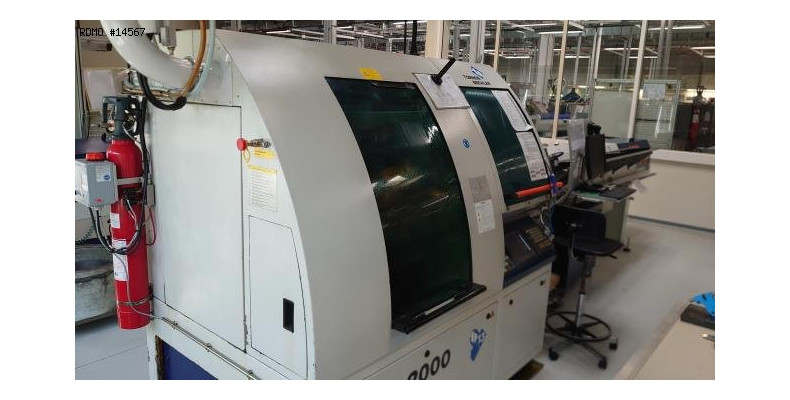

TORNOS DECO 2000/13 10 axis

- Number of axes : 10
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 16 [mm]
- Max. machining length : 180 [mm]
- Spindle speeds : 12000 [rpm]
- C axis indexing precision : 0.1 [°]
COUNTER-SPINDLE
- Max. bar diameter : 16 [mm]
- Spindle speeds : 12000 [rpm]
- C axis indexing precision : 0.1 [°]
- Number of guide bush holders : 2
GUIDE BUSH HOLDER 1
- Number of positions : 6
- Number of motorized positions : 3
- Live tools speed : 8000 [rpm]
GUIDE BUSH HOLDER 2
- Number of positions : 6
- Number of motorized positions : 3
- Live tools speed : 8000 [rpm]
END ATTACHMENT
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 8000 [rpm]
SECONDARY OPERATION
- Number of positions : 6
- Number of motorized positions : 6
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
MACHINE HOURS

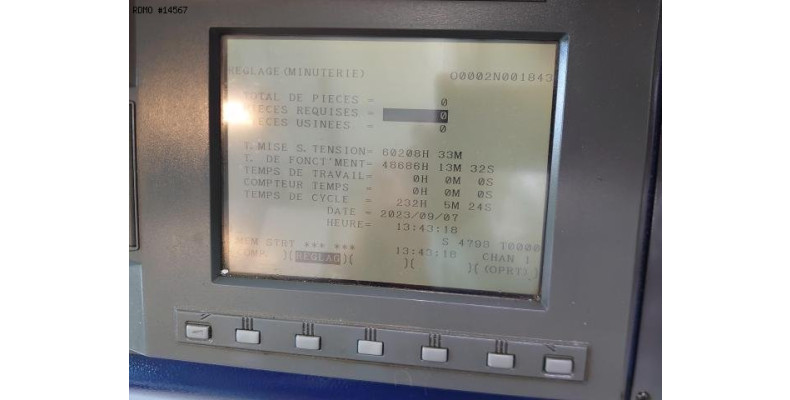

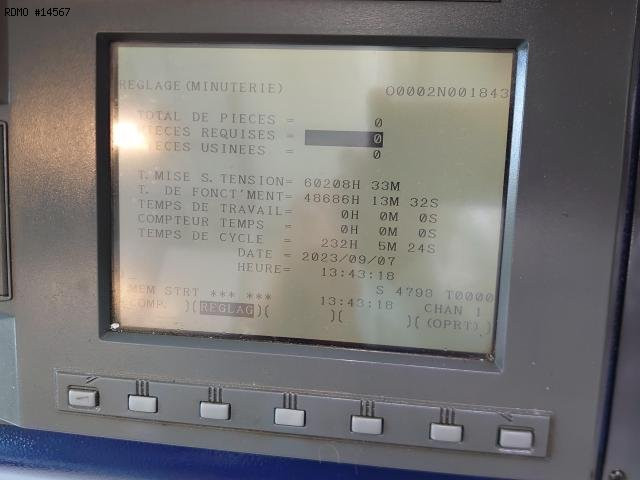

- Number of working hours : 49500 [h]

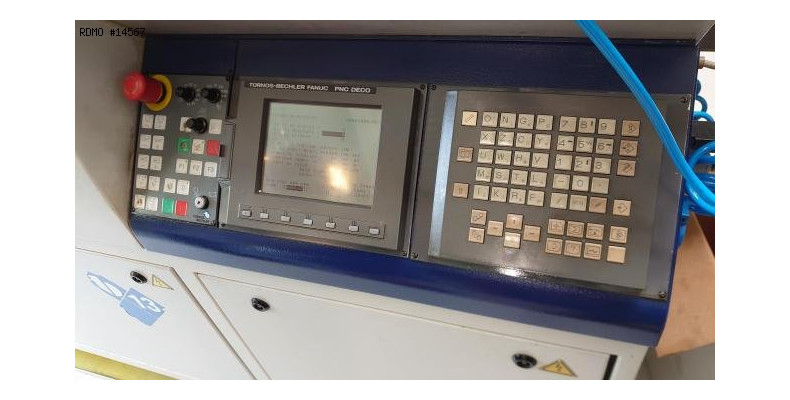

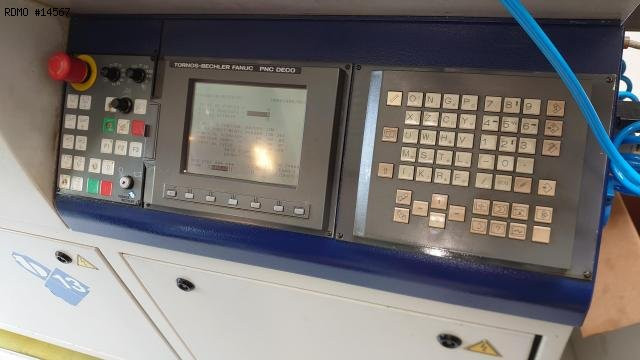

- CNC : FANUC PNC DECO
- Rotating tool motor on : S2, S3, S5,S6
- Rotating guide bush
- Parts catcher
- Ejection of workpiece
- Coolant tank
- Bar loader : TORNOS SSF
- Fire extinguisher *
