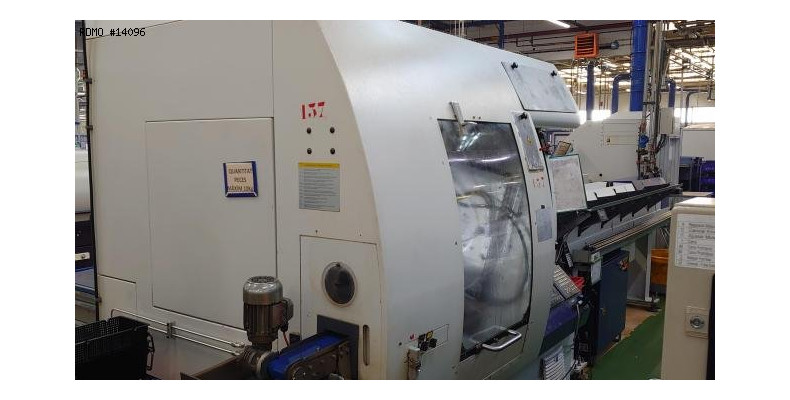

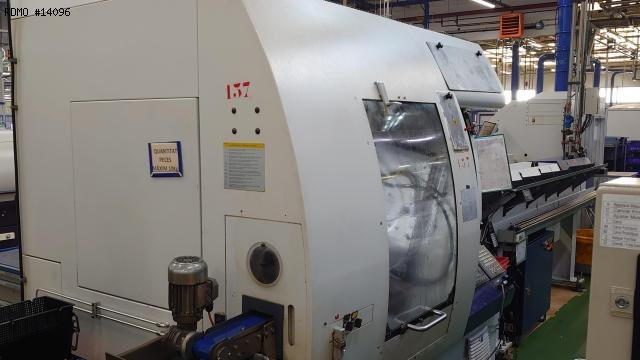

TORNOS DECO 2000/20 10 axis

- Number of axes : 10
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 25.4 [mm]
- Max. machining length : 200 [mm]
- Spindle speeds : 10000 [rpm]
- C axis indexing precision : 0.1 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.1 [°]
- Number of guide bush holders : 2

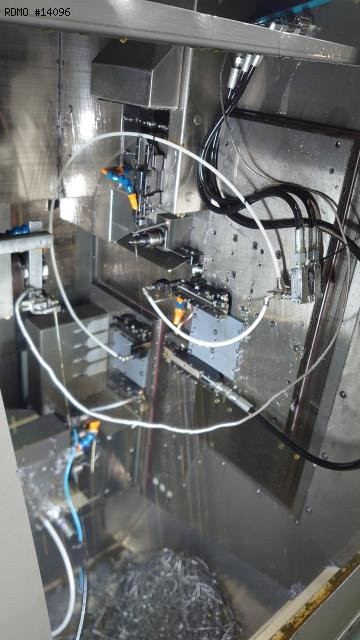

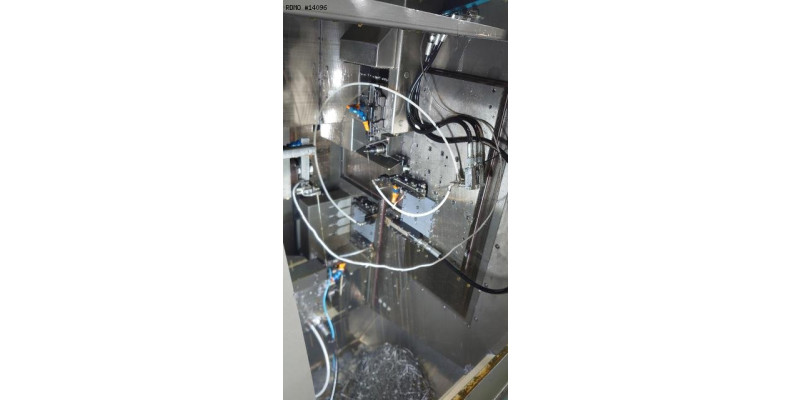

GUIDE BUSH HOLDER 1
- Number of positions : 5
GUIDE BUSH HOLDER 2
- Number of positions : 5
- Number of motorized positions : 4
- Live tools speed : 8000 [rpm]
END ATTACHMENT
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]

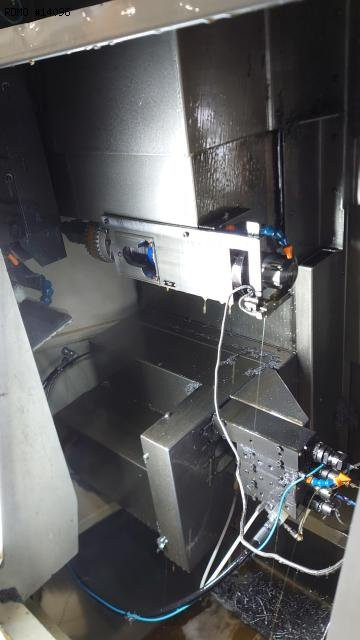

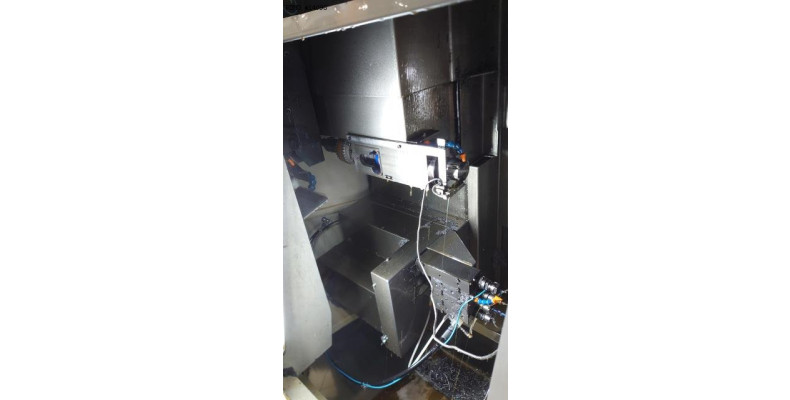

SECONDARY OPERATION
- Number of positions : 7
- Number of motorized positions : 3
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 14 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2270 x 1650 [mm]
- Machine height : 2200 [mm]
- Machine weight : 3500 [kg]
MACHINE HOURS
- Number of working hours : 72299 [h]

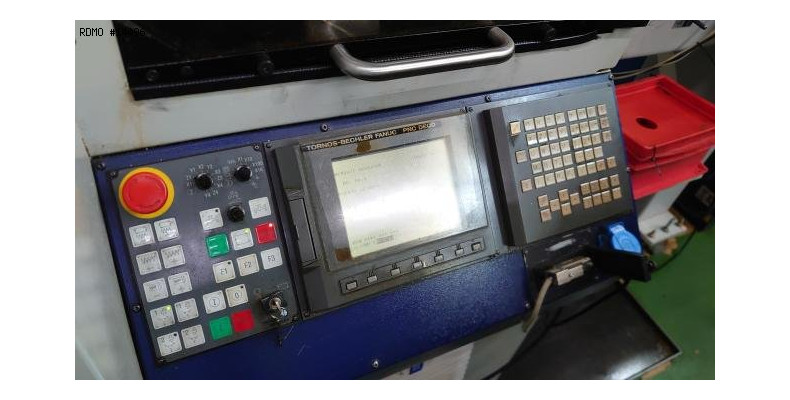

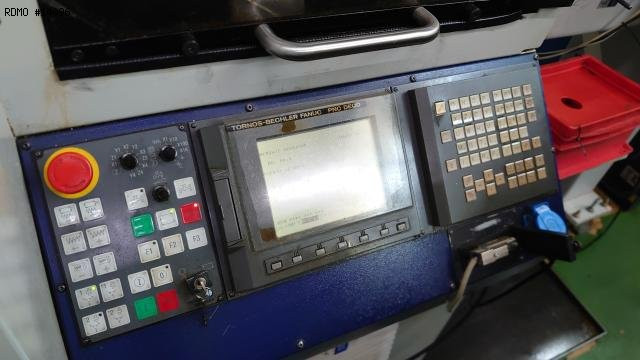

- CNC : Fanuc
- Rotating tool motor on : S2,S3,S5 vertical et horizontal
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Coolant tank

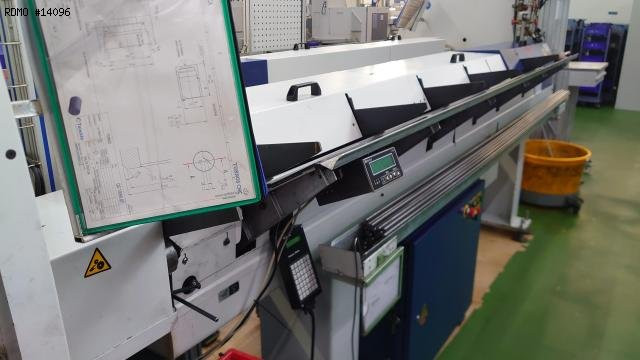

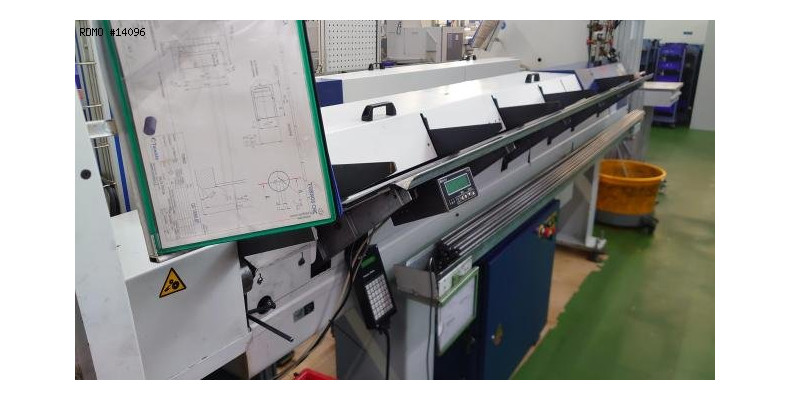

- Bar loader : TORNOS SSF-226
