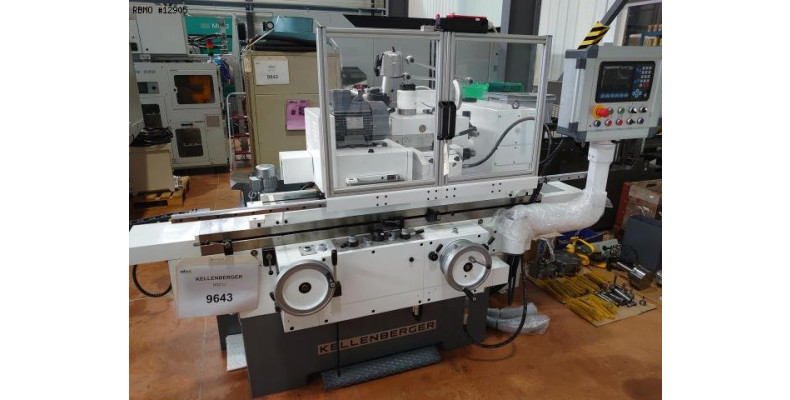

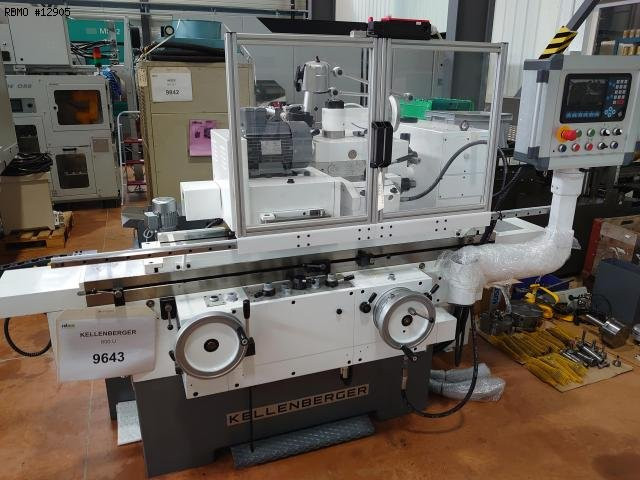

KELLENBERGER 600 U

Name: Cylindrical grinder KELLENBERGER 600 U
Brand: KELLENBERGER
Availability: InStock

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

12905

PDF datasheet to download:

Brand: KELLENBERGER

Model: 600 U

Year:

Serial: 32.465.2779

12905

KELLENBERGER 600 U

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

PDF datasheet to download:

Brand: KELLENBERGER

Model: 600 U

Year:

Serial: 32.465.2779

Ask Price

Caracteristics

- distance between centres : 600 [mm]
- centres height : 225 [mm]
- table orientation : 11°

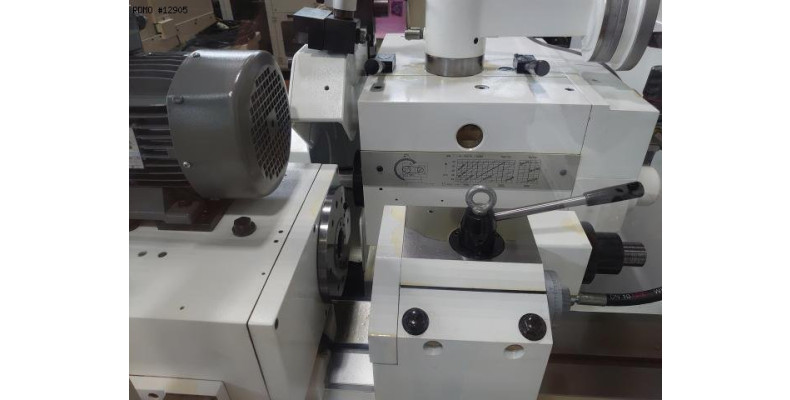

- universal grinding wheel holder
- left grinding wheel size : 400 x 50 x 127 [mm]
- right grinding wheel size (can be added) : 225 x 20 x 76,2 [mm]
- motor power : 3 [kW]
- spindle speed : 1500 / 1700 / 2200
- orientation of grinding wheel holder headstock : 270° (3 x 90 °)
- boring for internal spindle : 70 [mm]
- orientation of part holder headstock : 360 °
- spindle speed : 20 - 400 [rpm]
- spindle internal cone: Morse 5
- motor power : 0,9 [kW]
- counter headstock internal cone: Morse 4
- counter headstock sleeve stroke : 30 [mm]
- size : 2580 x 1680 x 1670 [mm]
- weight : 2200 [kg]

Equipment

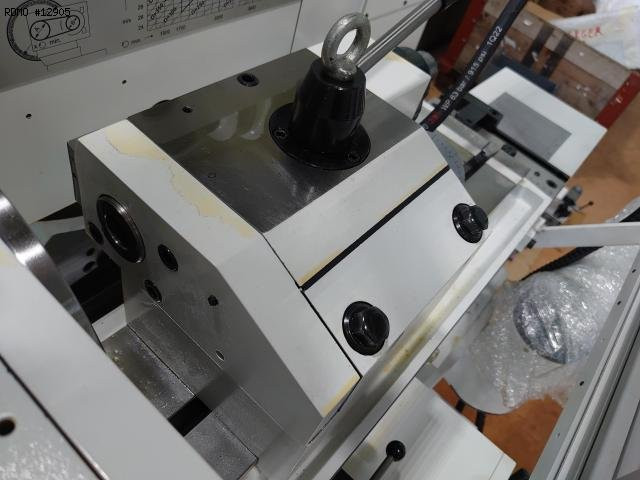

- 1 tail stock
- 1 fixed diamond grinding device holder on tail stock

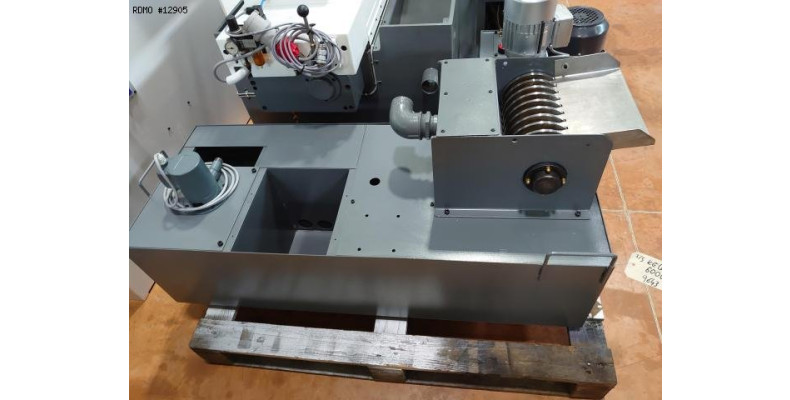

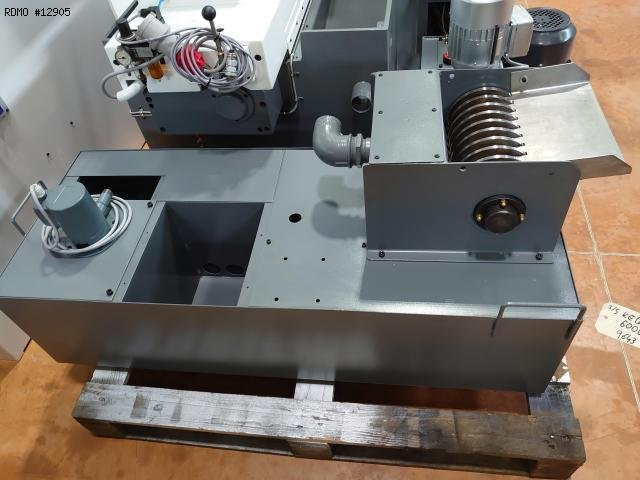

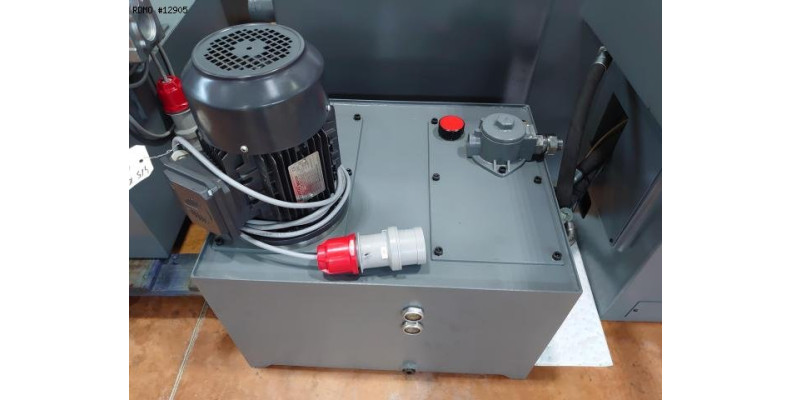

- 1 lubricating tank with magnetic filter
- 1 chuck 3 jaws
- 1 magnetical chuck

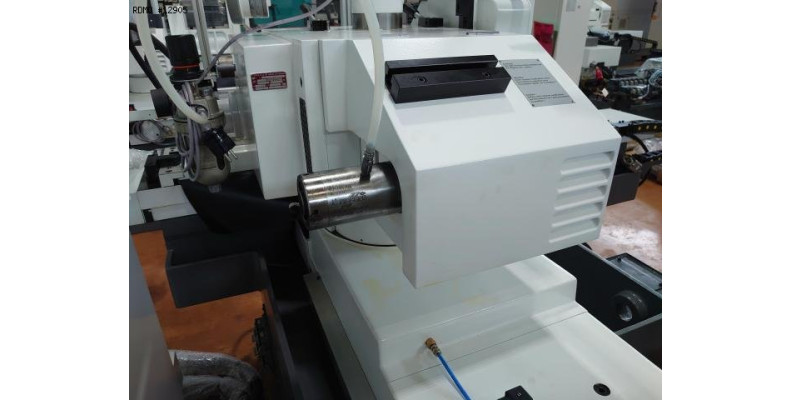

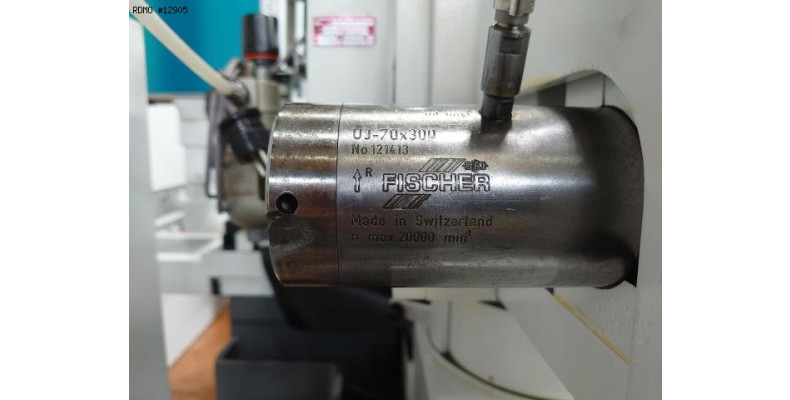

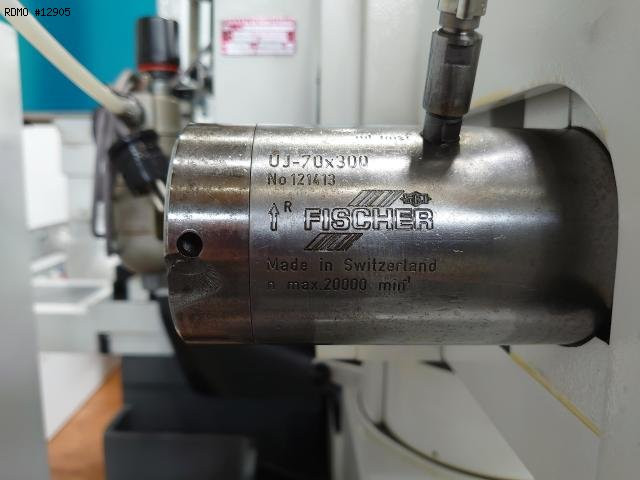

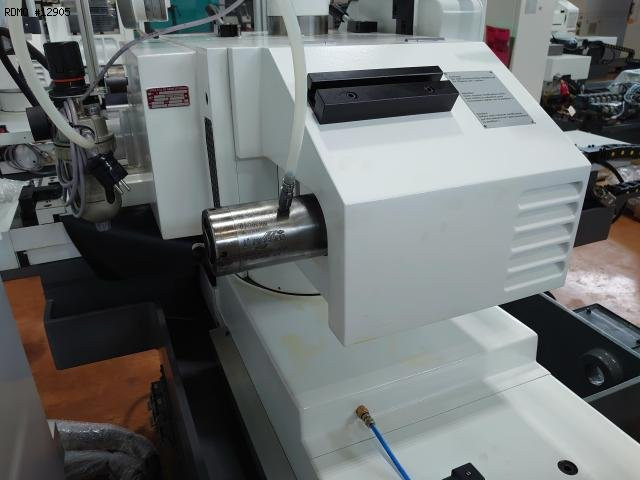

- 1 inside spindle Fischer 20000rpm
- 1 inside spindle trueing device
