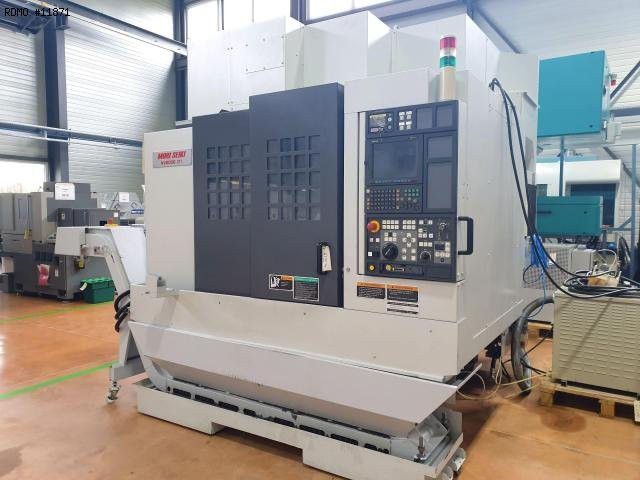

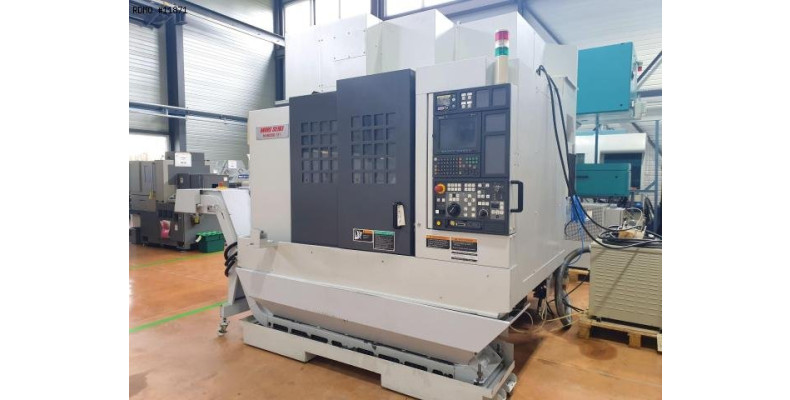

MORI SEIKI NV5000 Alpha 1A/40 5 axis

Name: Vertical machining center MORI SEIKI NV5000 Alpha 1A/40 5 axes
Brand: MORI SEIKI
Availability: InStock

Milling Vertical machining center

11871

PDF datasheet to download:

Brand: MORI SEIKI

Model: NV5000 Alpha 1A/40

Year: 2006

Serial: NV501FC3697

11871

MORI SEIKI NV5000 Alpha 1A/40 5 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: MORI SEIKI

Model: NV5000 Alpha 1A/40

Year: 2006

Serial: NV501FC3697

Ask Price

Caracteristics

- Number of axes : 5
MILLING SPINDLE
- Tool holder type : BT40
- Spindle power : 18,5 [kW]
- Spindle speeds : 20.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 800 x 510 x 510 [mm]
- Rapid traverses rates (X/Y/Z) : 42 [l]
TOOL CHANGER

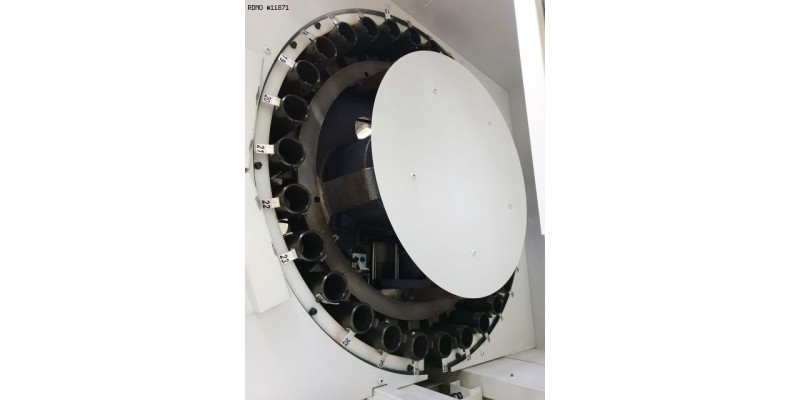

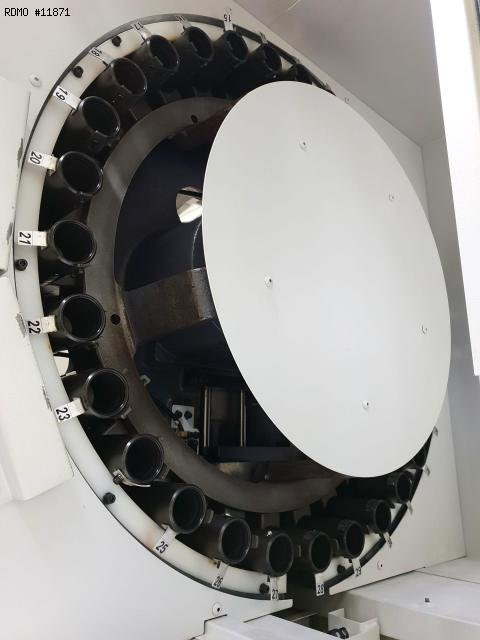

- Tool magazine capacity : 30
TABLE
- Table dimensions : 1100 x 600 [mm]
- Distance table / spindle nose (min./max.) : 150-660 [mm]
- Maximum weight upon table : 1000 [kg]
POWER SUPPLY
- Supply voltage : 220 [V]
- Total installed power : 42 [m/min]
WEIGHT & DIMENSIONS
- Machine floor space : 2460 x 2710 [mm]
- Machine height : 2603 [mm]
- Machine weight : 6.500 [kg]
MACHINE HOURS
- Number of working hours : 17.197 [h]
- Number of spindle hours : 15.198 [h]

Equipment

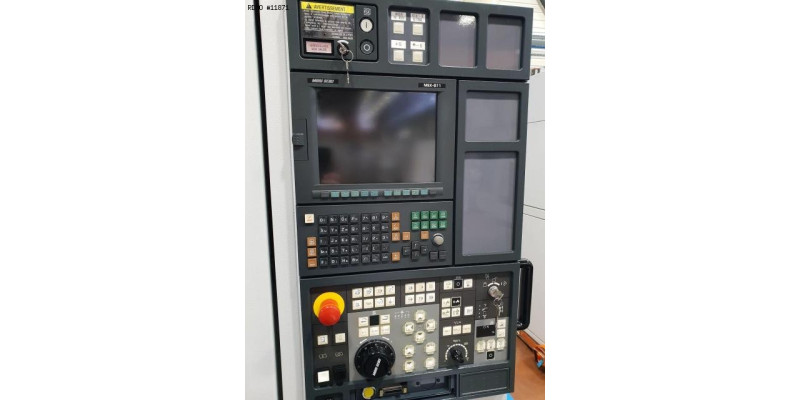

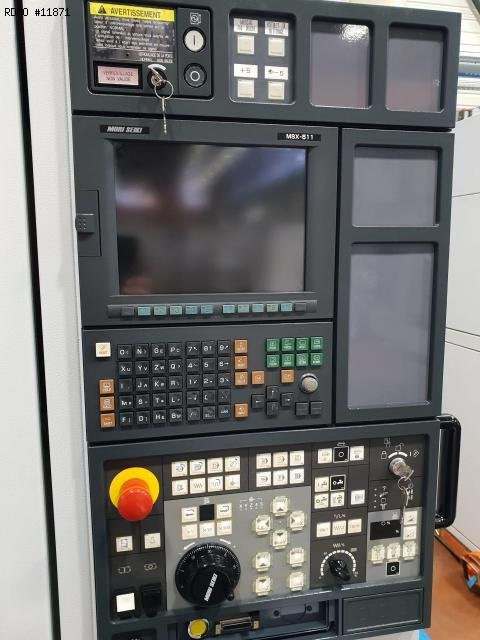

- CNC : MSX-511
- Data server : memory 1280 Mo
- Interface : PCMCIA / RJ45 / RS232
- 3 colors status lamp

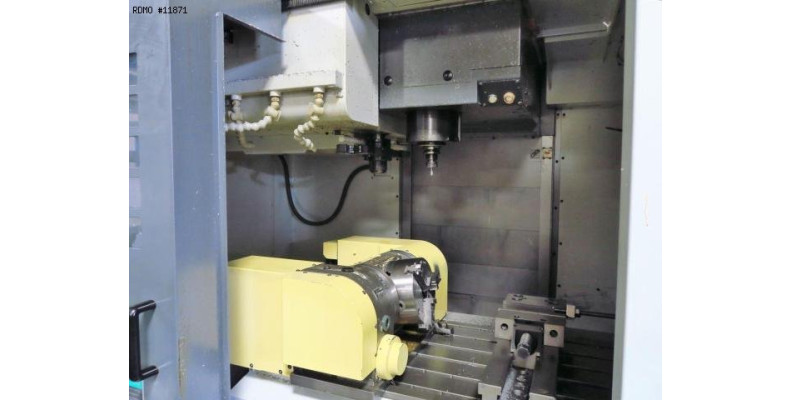

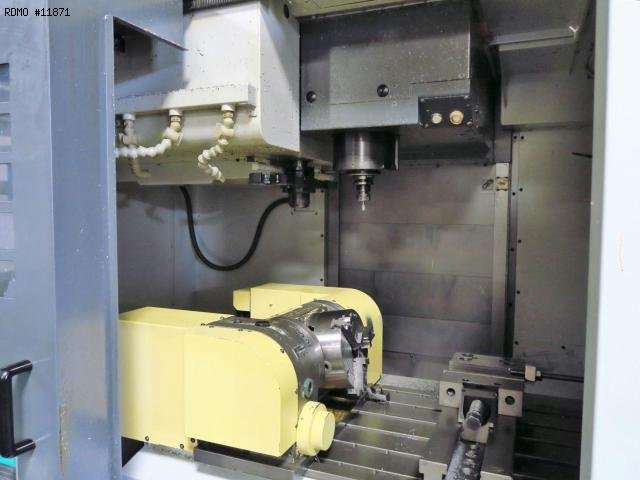

- Type of divisor : 4e-5e axe intégré
* manufacturer : NIKKEN 5AX 200 II FA
- Coolant tank : 230 [kVA]
* with high-pressure pump : 40 [bars]
* With washing gun
* with cabin washing
- Coolant through spindle
- Chips conveyor
- Spindle cooling unit
- Electric transformer
- Milling vice
- Tool-holders : 1
